Oniar Forestry Trailers
Oniar forestry trailers are purpose designed for forestry work, they are available in four sizes ranging from 7-14 tonnes carrying capacity and can be fitted with one of a choice of four purpose built cranes and stabilising legs depending on the clients requirements.
Options Include
• hydraulic or fold down stabilising legs
• frame steering
• hydraulic pump with tank support posts
• drum brakes
• hydraulic brakes and pneumatic brakes
• frame extension
• lights and removable lighting bar
• frame steering
• hydraulic pump with tank support posts
• drum brakes
• hydraulic brakes and pneumatic brakes
• frame extension
• lights and removable lighting bar
• wheels 11,5/80-15,3
• wheels 400/60-15,5
• wheels 500/50-17
• wheels 520/50-17
• wheels 550/45-22,5
• wheels 600/50-22,5
• wheels 400/60-15,5
• wheels 500/50-17
• wheels 520/50-17
• wheels 550/45-22,5
• wheels 600/50-22,5
To download a brochure - click HERE
Standard Combinations

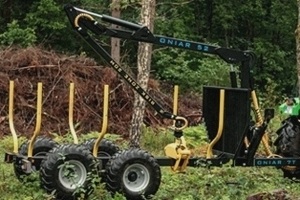

Oniar 52 crane, 7T Trailer and G16 Grapple.
This combines the smallest 7000 kg capacity trailer with the Oniar 52 crane and G16 Grapple. The Oniar 52 can lift 585kg at 4 metres and 490kg at full extension (less the weight of the grapple), the crane mounts directly onto the chassis of the trailer and is powered by the tractors
hydraulics. The G16 grapple weighs 70kg and has a maximum gripping width of 1.22mts.Oniar 52 Crane technical data:
• Maximum reach 5.2 meters
• Lifting capacity (gross) 33 kNm
• Lifting capacity (net) 22 kNm
• Slewing capacity (gross) 5,7 kNm
• Slewing angle 390°
• Recommended pump capacity 30-50 l/min
• Weight without rotator and grapple 530 kg

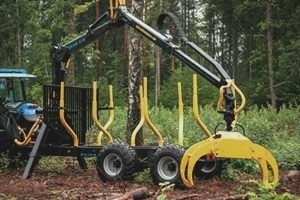

Oniar 67s crane, 10T Trailer and G21 Grapple
Combining a 10,000 kg trailer with a Oniar 67s crane and G21 grapple. The Oniar 67s crane can lift
can lift 732kg at 4 metres and 436kg at full extension (less the weight of the grapple), the G21 grapple weighs 120kg and has a maximum gripping width of 1.23mts.
Oniar 67s Crane technical data:
• Maximum reach 6.7 meters
• Telescopic reach 1.34 meters
• Lifting capacity (gross) 46 kNm
• Lifting capacity (net) 30 kNm
• Slewing capacity (gross)14 kNm
• Slewing angle 390°
• Recommended pump capacity 40-60 l/min
• Weight without rotator and grapple 880 kg
Combining a 10,000 kg trailer with a Oniar 67s crane and G21 grapple. The Oniar 67s crane can lift
can lift 732kg at 4 metres and 436kg at full extension (less the weight of the grapple), the G21 grapple weighs 120kg and has a maximum gripping width of 1.23mts.Oniar 67s Crane technical data:
• Maximum reach 6.7 meters
• Telescopic reach 1.34 meters
• Lifting capacity (gross) 46 kNm
• Lifting capacity (net) 30 kNm
• Slewing capacity (gross)14 kNm
• Slewing angle 390°
• Recommended pump capacity 40-60 l/min
• Weight without rotator and grapple 880 kg

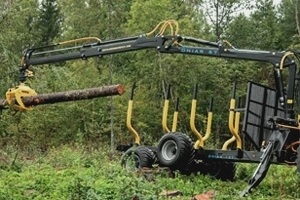

Oniar 67 Crane, 12,000kg trailer and G23 Grapple
Combining a 12,000 kg forestry trailer with a Oniar 67 crane and heavy duty G23 grapple. The Oniar 67 crane can lift can lift 1106kg at 4 metres and 700kg at full extension (less the weight of the grapple), the G23 grapple weighs 110kg and has a maximum gripping width of 1.32mts.
Oniar 67 Crane technical data:
• Maximum reach 6.7 meters
• Telescopic reach 1.33 meters
• Lifting capacity (gross) 72 kNm
• Lifting capacity (net) 45 kNm
• Slewing capacity (gross) 15 kNm
• Slewing capacity (net) 10 kNm
• Slewing angle 390°
• Recommended pump capacity 40-60 l/min
• Weight without rotator and grapple 1140 kg
Combining a 12,000 kg forestry trailer with a Oniar 67 crane and heavy duty G23 grapple. The Oniar 67 crane can lift can lift 1106kg at 4 metres and 700kg at full extension (less the weight of the grapple), the G23 grapple weighs 110kg and has a maximum gripping width of 1.32mts.Oniar 67 Crane technical data:
• Maximum reach 6.7 meters
• Telescopic reach 1.33 meters
• Lifting capacity (gross) 72 kNm
• Lifting capacity (net) 45 kNm
• Slewing capacity (gross) 15 kNm
• Slewing capacity (net) 10 kNm
• Slewing angle 390°
• Recommended pump capacity 40-60 l/min
• Weight without rotator and grapple 1140 kg

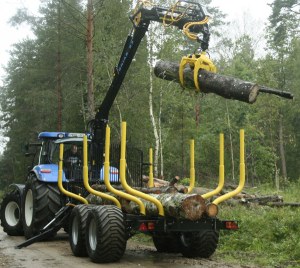

Oniar 83 crane, 14T forestry trailer and G23 GrappleCombining a 14,000 kg forestry trailer with a Oniar 83 crane and heavy duty G23 grapple. The Oniar 83 crane can lift can lift 1160kg at 4 metres and 540kg at full extension (less the weight of the grapple), the G23 grapple weighs 110kg and has a maximum gripping width of 1.32mts.
• Maximum reach 8.3 meters
• Telescopic reach 2.8 meters
• Lifting capacity (gross) 72 kNm
• Lifting capacity (net) 45 kNm
• Slewing capacity (gross) 15 kNm
• Slewing capacity (net) 10 kNm
• Slewing angle 390°
• Recommended pump capacity 40-60 l/min
• Weight without rotator and grapple 1230 kg
