Volverini AY Woodchippers

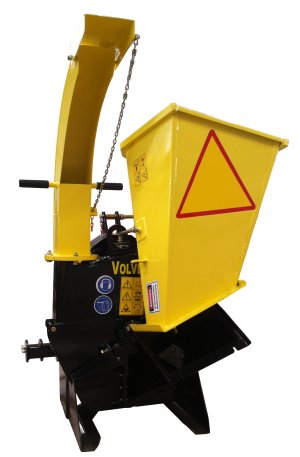

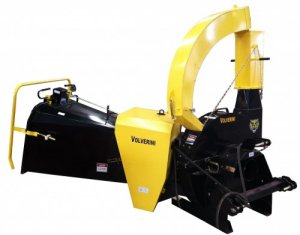

The AY series of woodchippers are tractor mounted PTO driven chippers. The AY400 can handle upto 10cm (4"), AY600 upto 15cm (6"), AY900 upto 21cm (9") and AY1000 upto 25cm (10") timber, they are ideal for use in logging, land clearance, orchards and gardens. The AY400 has a manual feed the AY600, AY900 & AY1000 have hydraulic feeds which requires no assistance from the operator. All have 360° rotating discharge chutes. They are designed to produce uniform chip size which is ideal for burning, animal bedding, landscaping and mulch, it can comfortably handle both softwood and hardwood, green or seasoned.
Options include an electric power unit for a static installation and a Bobcat style skid steer loader mount.
| AY400 | AY600 | AY900 | AY1000 | ||
| Type | Disc chipper – single Disc | Single disc chipper, optional Double Disc | Disc chipper, single disc | Disc chipper Double disc |
|
| Output | 3- 10 m3/h wood | 5- 15 m3/h wood | 10- 25 m3/h wood | 10- 30 m3/h wood | |
| Max. log diameter | 100 mm |
150 mm |
210 mm |
250 mm | |
| Chip Length |
|
10-12-14mm |
|
Adjustable between 3mm- 25 mm | |
| Tractor power | 25 hp- 50 hp |
30-55kW 40 hp-75 hp |
45–75kW 60-100 hp |
45–80kW 60-110hp |
|
| PTO speed | 540 or 1000 rpm |
540 rpm |
540 or 1000 rpm |
540 or 1000 rpm |
|
| Number of Cutting knives | 2 Pcs Opt 3pcs or 4pcs |
2 pcs |
2 Pcs as Standard Opt 3 or 4 |
3 movable | |
| 5V-Belt & Pulley | Available |
Available |
|||
| No of hammers (Stationary knives) | 2 Adjustable |
2 Each can be moved | 2 Each can be moved | 2 Each can be movable | |
| Power source | Tractor PTO | Tractor PTO | Tractor PTO |
Tractor PTO | |
| Mounting | 3- point CAT I/II | 3- point CAT I/ II | 3- point CAT I/ II |
3- point CAT I/II | |
| Chipper weight | 280 kg |
530 kg |
800 kg |
900 kg |
|
| Disk diameter | 630 mm |
660 mm |
960 mm |
1048 mm |
|
| Rotor weight | 65 Kg (75Kg with 2 pcs blades & axle) | 75 Kg (90Kg with 2 blades & axle) | 160 Kg (215 Kg with 2 pcs blades and axle) |
220 kg |
|
| Discharge pipe | 360° turning |
360° turning |
360° turning |
360° turning |
|
| Access to chipper housing | 1 side |
single |
1 side |
1 side |
|
| Feeder | Manual Feeding |
Single roller hydraulic feed | Hydraulic Feeding 2 Pcs (Upper & Lower) | Hydraulic Feeding, 2 Pcs (Upper & Lower) |
|
| Roller speed adjustment | Not Available |
Optional |
Available |
Available |
|
| Branch Breaker | Not Available |
Optional |
Not Available |
Available |
|
| Side Chute | Not Available |
1 Pc |
1 Pc Available |
2 pcs Available |
|
| Spring tensioner adjustment | 1 Pc Available |
Optional |
1 Pc Available |
Available |
|
| Reversible Feed Function | Not Available |
Optional |
Available |
Available |
|
| Transport position for feed hopper | Not Available |
Optional |
Available |
Available |
|
| Easy Cover Opening | Available |
Optional |
|
Available |
|
| 20 Litre oil tank | Not Available |
Optional |
Optional |
Optional |
|
