Vahva Jussi ATV Timber trailer and grabs

Vahva Jussi Forestry Cranes & Trailers

Vahva Jussi are manufacturers of specialist ATV, Quad, and UTV forestry trailers, cranes and grabs. The twin axle trailer chassis has a variety of options available including driven wheels, chassis extension and hydraulic tipping cargo box, the cranes are available with a variety of grabs, stabilising legs and extensions.

Although primarily designed for quads and ATVs they can also be used behind suitable 4X4s, compact tractors and utility trucks (UTVs, John Deere Gator, Kawasaki Mule, Kubota RTV900 etc.), the cranes can be mounted on any suitable chassis these include road trailers, Ifor Williams, Wessex, Bateson etc., or on commercial vehicles.

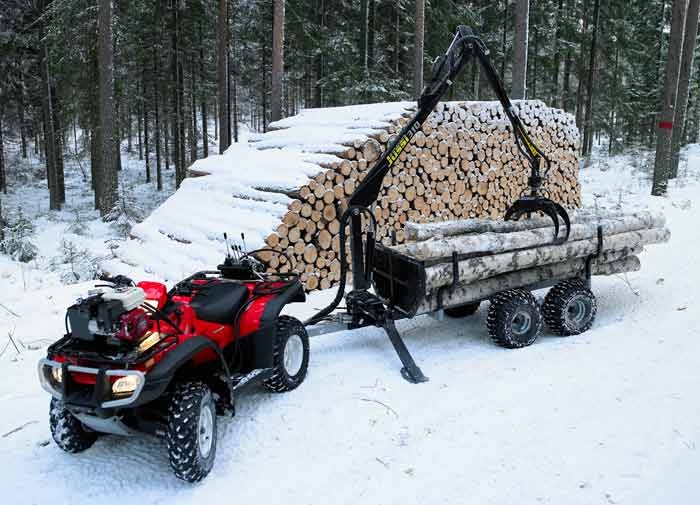

Vahva Jussi Log trailer

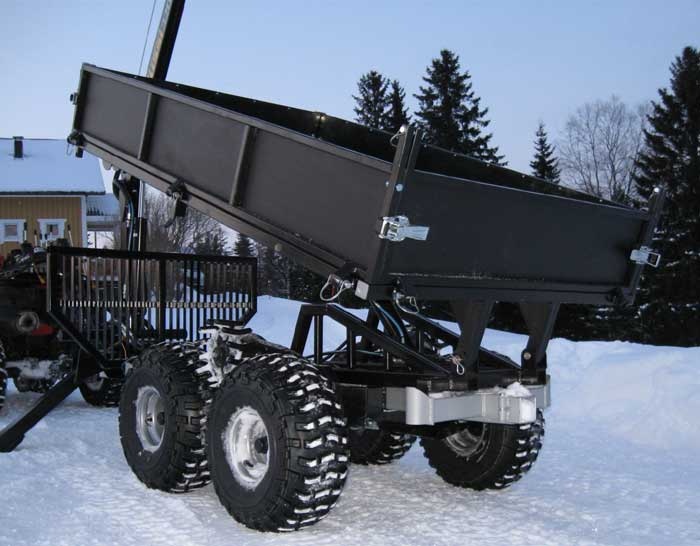

This is a robust trailer designed to be towed behind a ATV, quad or UTV, but could also be fitted onto a compact tractor. It is capable of carrying load of up to 1,500kgs, it has a variety of options including an alternate tipping body (see lower left hand photo) and drive unit to both axles.

It can also be fitted with a Hook Lift self loading system, this enables to load and unload quickly and easily, please see the video below on the right.

Both the crane and side support posts can be moved on the chassis to adjust the centre of gravity. The loading bed can be extended by 0.5 or 1.0 m allowing for the transportation of logs up to 5.0 m:

  • Maximum load at 25 km/h - 1500 kg
  • Maximum speed - 30 km/h
  • Loading area - 2.400 m
  • Length - 3.809 m
  • Width - 1.252 m
  • Tyres – 22x11-8
  • Weight - 170 kg.
Kreisi Timber Trailer Vahve Jussi ATV Forestry Trailer

Vahva Jussi Cranes

Kreisi 320Vahva Jussi 320

550kg capacity forestry crane, maximum outreach 3.2 metres, outreach distance/capacity: 280kg/3.2mts, 385kg/2.0mts, slewing angle 330°

Kreisi 320Vahva Jussi 400

550kg capacity forestry crane,

maximum outreach 4.0 metres, outreach distance/capacity: 280kg/3.2mts, 385kg/2.0mts,

slewing angle 330°


Vahve Jussi Trailer Options & Attachments

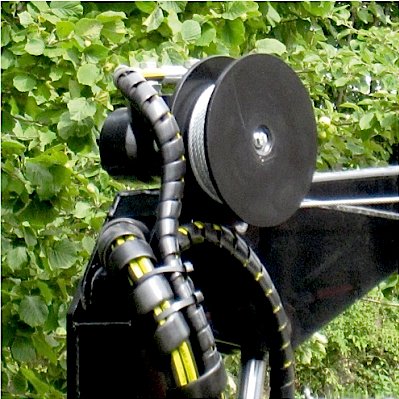

Radio WinchRadio Winch 25m

Drag winch.
Wire diameter: 5mm
Wire length: 25mts
Max winching speed: 30m/min
Max Pull: 435kg

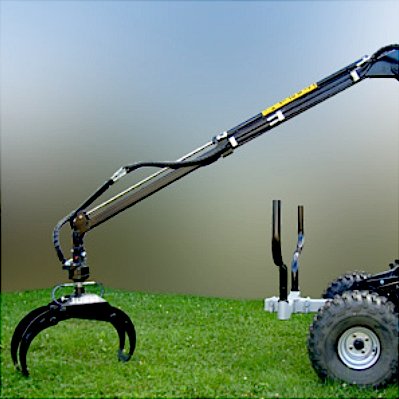

Telescopic BoomTelescopic Boom

Extends the reach and manoeuvrability, ideal for use with the energy grab.
Max reach: 4.0mt
Adjust range: 900mm

Energy grappleEnergy Grapple

Harvester Head, designed for forestry management & energy wood cutting. Max diameter 12cm, blade can be removed
Weight: 52kg
Cut dia.: 175bar

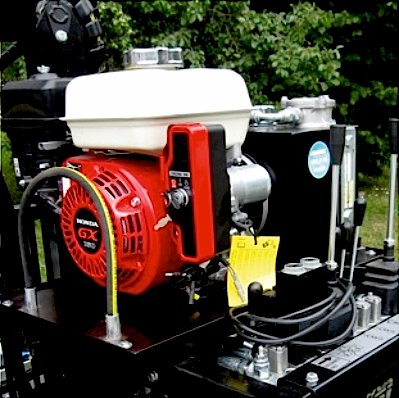

Hydraulic Power PackHydraulic Power

5.5hp Honda petrol hydraulic power pack, electric start option.
Oil flow: 9 l/min
Oil pressure: 175 bar
Weight: 38kg

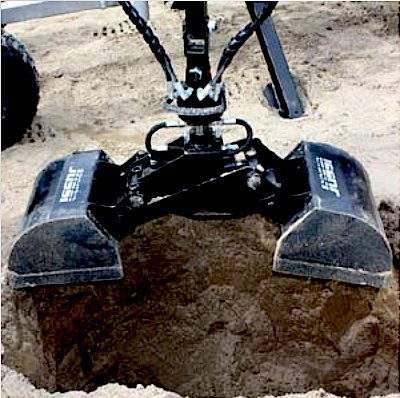

Earth BucketEarth Bucket

For sand or gravel plus ditch digging.
Weight: 60kg
Bucket capacity: 50L

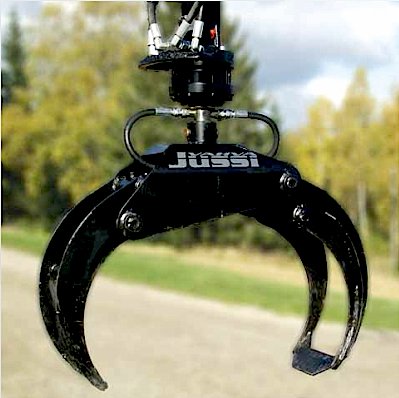

Grapple Grapple

Strong & reliable grapple both light and durable.
Grapple max. open: 750mm
Grapple volume: 0.08m³

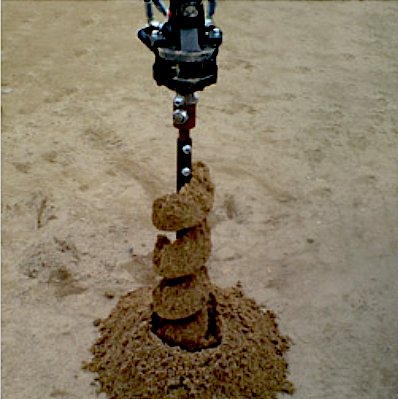

Hydraulic Power PackEarth Auger

Auger for soft ground, ideal for tree planting & garden work.
Drill dia.: 10, 15 & 20 cm

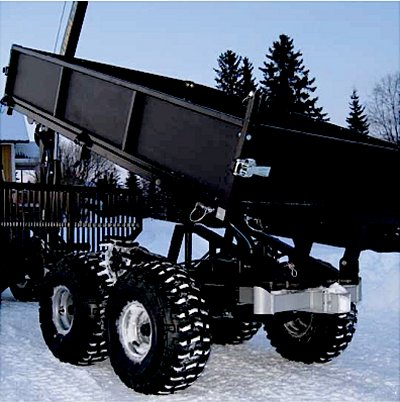

Earth BucketTipping Box

Tipping cargo box, connects to the existing chassis by straps.
Max load: 1000kg
Tipping angle: 46°

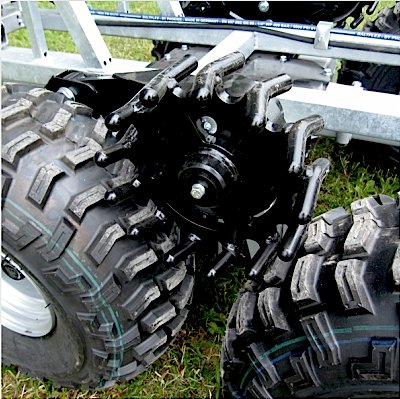

Grapple 4 Wheel Drive

4wd drive unit for trailer chassis, can also act as a break on hills.
Drive speed; 3 kph
Max pushing power: 650 kg

Hydraulic Power PackChassis Extension

Required when transporting logs up to 5 m long. Two sizes of frame extensions: 0.5 m and 1.0 m Yellow bolster post extension: Required for energy wood and branch transport.
